Introduction to Vacuum Circuit Breakers

A Vacuum Circuit Breaker is an advanced type of circuit breaker that uses vacuum technology to interrupt and isolate electrical current in power systems. It is one of the most reliable and efficient types of circuit breakers used in medium-voltage and high-voltage networks. The main purpose of a Vacuum circuit breaker is to protect electrical equipment from faults such as overloads and short circuits, ensuring smooth and safe operation of electrical power systems.

What Is a Vacuum Circuit Breaker?

A Vacuum Circuit Breaker operates by extinguishing the electrical arc that forms when contacts separate within a vacuum. The vacuum provides an environment free of gas and other materials, which makes arc extinction extremely fast and effective. Since there are no gases or oil used, the Vacuum Circuit Breaker is maintenance-free, environmentally safe, and highly durable compared to other types of breakers.

Construction of a Vacuum Circuit Breaker

The Vacuum Circuit Breaker consists of several key components designed to ensure reliability and safety:

• Fixed and Moving Contacts: These contacts open and close to control the flow of electricity.
• Vacuum Interrupter: This is the core of the Vacuum Circuit Breaker, where the arc is extinguished within a vacuum-sealed chamber.
• Operating Mechanism: It provides the mechanical force to open or close the contacts.
• Arc Shield: Prevents metal vapors from contaminating the vacuum chamber walls.
• Insulating Enclosure: Protects and supports the internal components.

All these parts together make the Vacuum Circuit Breaker compact, efficient, and capable of handling high voltages with minimal maintenance.

Working Principle of a Vacuum Circuit Breaker

The Vacuum Circuit Breaker works on the principle of arc interruption in a vacuum. When a fault occurs, the breaker’s contacts separate, creating an arc between them. However, since the contacts are enclosed in a vacuum, there are no gas molecules to sustain the arc. The metal vapors generated during contact separation quickly condense, causing the arc to extinguish almost instantly. Once the arc is extinguished, the Vacuum Circuit Breaker completely isolates the faulty section from the rest of the system.

The recovery of dielectric strength in the vacuum is extremely rapid, allowing the Vacuum Circuit Breaker to restore normal conditions quickly. This makes it suitable for applications that require high-speed operation and frequent switching.

Advantages of a Vacuum Circuit Breaker

The Vacuum Circuit Breaker offers several significant advantages that make it a preferred choice in modern power systems:

• High Reliability: The absence of gas or oil reduces the chances of leakage or degradation.
• Low Maintenance: With minimal moving parts and no fluid replacement, the Vacuum Circuit Breaker requires very little maintenance.
• Long Service Life: The contacts experience very little wear, resulting in a longer operational life.
• Fast Arc Extinction: The arc is extinguished rapidly, reducing damage to electrical components.
• Compact Design: The Vacuum Circuit Breaker is smaller and lighter than other types of breakers.
• Environmentally Friendly: No harmful gases are used, making it safe for the environment.

Applications of a Vacuum Circuit Breaker

The Vacuum Circuit Breaker is widely used in different sectors due to its superior performance and reliability. Common applications include:

• Power Generation Plants: Used to protect generators and transformers.
• Industrial Facilities: Provides protection for motors, switchgear, and control systems.
• Distribution Networks: Commonly used in medium-voltage substations and feeders.
• Railway Systems: Protects electrical traction and signaling systems.
• Renewable Energy Systems: Plays a key role in solar and wind energy grids.

The versatility of the Vacuum Circuit Breaker makes it ideal for both indoor and outdoor installations.

Types of Vacuum Circuit Breakers

Vacuum Circuit Breakers can be categorized based on their design and application:

• Indoor Vacuum Circuit Breaker: Installed within electrical switchgear panels for protection of internal circuits.
• Outdoor Vacuum Circuit Breaker: Designed to withstand environmental conditions and used in substations or pole-mounted systems.

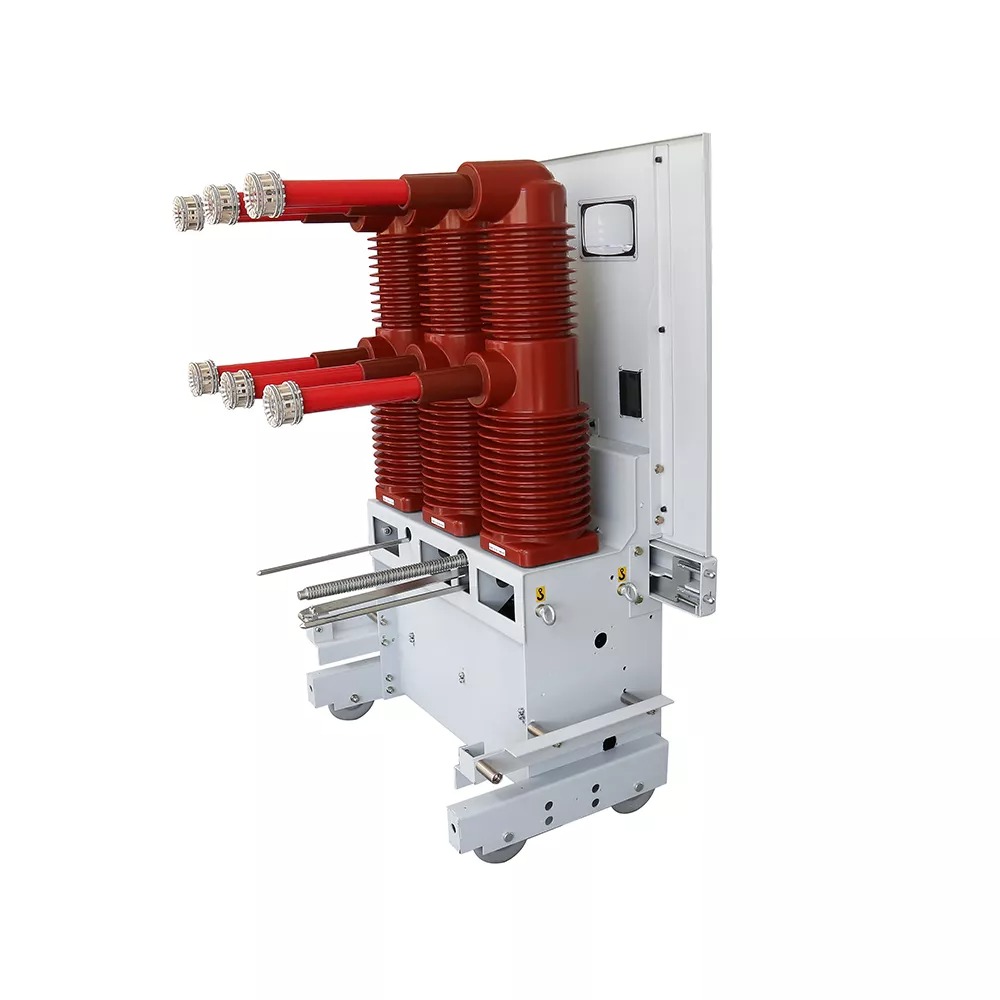

• Fixed Type and Withdrawable Type: Depending on whether they are permanently installed or removable for maintenance.

Each type of Vacuum Circuit Breaker serves specific operational requirements and environmental conditions.

Difference Between Vacuum Circuit Breaker and Other Breakers

Compared to other types of breakers such as air circuit breakers or SF6 breakers, the Vacuum Circuit Breaker has distinct advantages:

• It does not require gas refilling or monitoring.
• It has a faster arc extinction process.
• It offers better dielectric recovery.
• It provides more compact and lightweight construction.

These features make the Vacuum Circuit Breaker a more efficient and eco-friendly solution.

Maintenance of a Vacuum Circuit Breaker

The Vacuum Circuit Breaker requires minimal maintenance, but periodic inspection ensures long-term performance:

• Check the mechanical operation and alignment of the moving parts.
• Inspect the vacuum interrupter for signs of wear or contamination.
• Test the insulation resistance and contact resistance.

Proper maintenance ensures that the Vacuum Circuit Breaker operates efficiently and safely for years.

Conclusion
